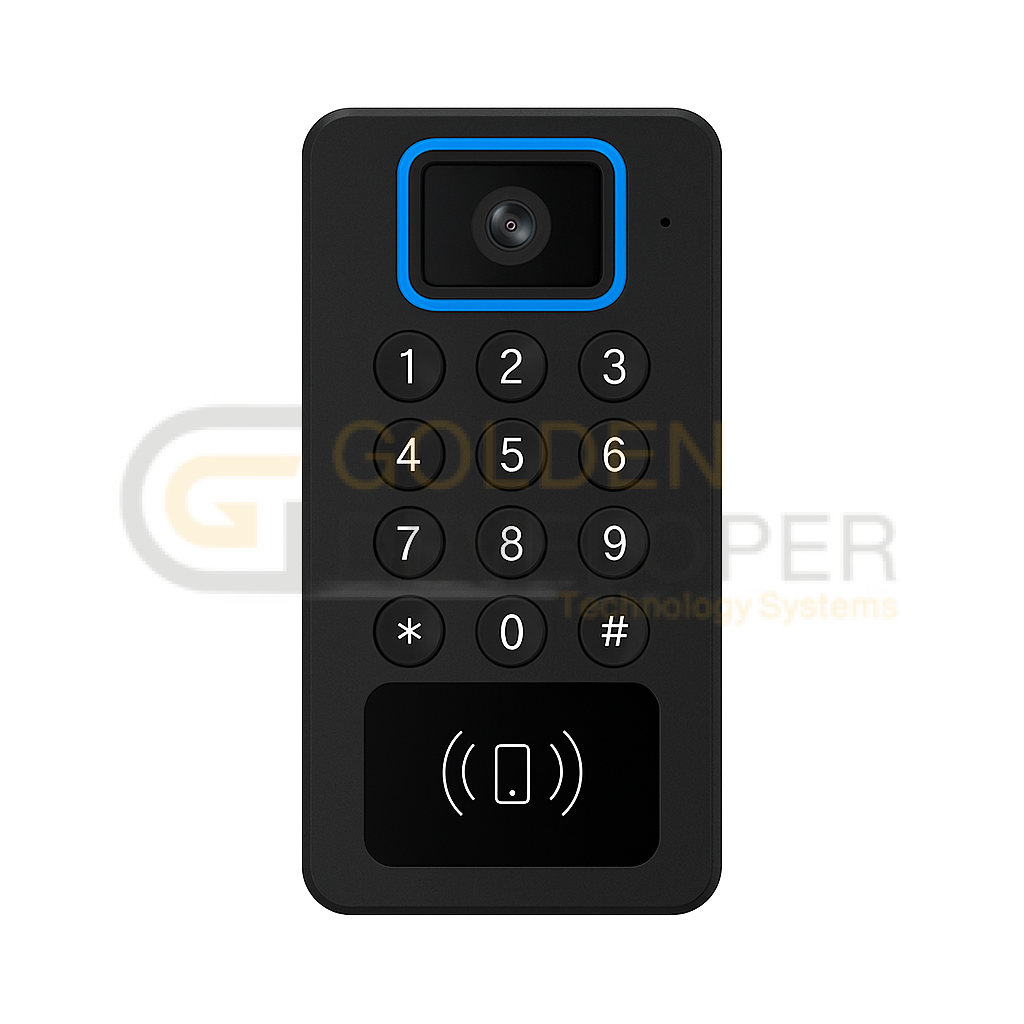

Cloud based Access Control: GD-FC500

GD-FC500 Access Control Machine is a new generation of Access Systems. The access terminal works in parallel QR CODE + Smart Card + NFC + Bluetooth. GD- FC500 is Standalone Unit and also supports multiple communications protocols. The appearance of the product adopts the standard 64 box industry standard. The operation speed is fast, the recognition rate is high, Bluetooth reading distance up to 30 meters. GD-FC500 has strong compatibility and it is widely used in the residential communities. GD-FC500 works also as Cloud Based with professional and multi functions Smart Mobile App either for Android & IOS. And Web App.

Reader_2

Features

Icon

Cloud based Access Control: GD-FC500

1 file(s) 736.57 KB
Login
Reader_2

Technical data

Access Control Integrated Machine (QR + Smart Card + NFC + Bluetooth)
Access Methods: Smart Card + NFC + QR + Bluetooth
Card Type: Mifare 13.56 MHz & Desfire v1, v2, v3
Communication: TCP/IP via internet
Interface Type: Relay

Access control function: Unlock – 1 channel (NO/NC)
Gate sensor 1 channel input (NO/NC)
Exit switch – 1 output switch with 1 signal input
Voltage input – 8 ~ 24v wide voltage input
Speaker – 8Ω1W

Swipe offline: Supports real-time uploading of the device’s card swipe, QR Code, Exit
Switch, Alarm Trigger, Door Magnetic Event, Password
Bluetooth range: Multi Range Access 5 ~ 30 meters
Software function: Create and share QR Encrypted visit invitation with access rules
Add users card data from the cloud
Indication method: Red, green, blue, white indication and light Beep and sound
Sensor resolution: QR, PDF417, CODEE39, CODE93, CODE128, ISBNN10, ITF,EAN13 etc.
Reading range: 0-4cm (Smart cards) / 0-20cm (QR Code) / 5 ~ 30 meters Bluetooth
Working voltage: 12V/1A
Standby current: 62 mA
Working temperature: -20 – 70 °C
Working humidity: 10% ~ 90%
Environmental sealing: IP64
Certification: CE, FCC, ROHS, IEC60950, IEC62471, EN55022, EN55024, EN61000-3, IEC62321, EN60950,
EN60529
